Intelligent water and fertilizer integration application and introduction

Intelligent water and fertilizer integration and broad application prospects of intelligent fertilizer applicator equipment

The intelligent irrigation and water and fertilizer integration system is the perfect integration of irrigation system and fertilization system. Combining the irrigation and fertilization equipment with the irrigation and fertilization system, through the data analysis of each sensor, the irrigation and fertilization plan is scientifically and reasonably arranged, and combined with the most advanced irrigation control system, the purpose of accurately controlling the amount of irrigation water, the amount of fertilization and the application time of water and fertilizer can be achieved. Realize remote automatic control of computer terminal and mobile terminal.

Centralized control, remote operation of sensors, cloud platform and intelligent water and fertilizer integrated machine to achieve integrated linkage, the staff can centrally control all equipment by controlling the intelligent water and fertilizer integrated machine on site; through the cloud platform, the staff can remotely Control equipment such as irrigation.

Application and prospect of fertilizer applicator:

The automatic billing system for fertilizer applicators and the Internet of Things for fertilizer applicators have been widely used in the fertilization of large-scale agricultural crops and agricultural economic crops. From extensive operation to refined operation, it can increase the output of farmers by 10-30% and save fertilizer. The cost is more than 15%, which increases the benefits for fertilizer manufacturers and reduces the transportation and distribution costs of fertilizers. The Internet of Things for water and fertilizer machines is a win-win system project with wide application prospects.

Function introduction:

1. Industrial fertilization pump, three-way fertilizer channel, can suck fertilizer at the same time or separately, the maximum fertilization rate of single channel is 420L/h;

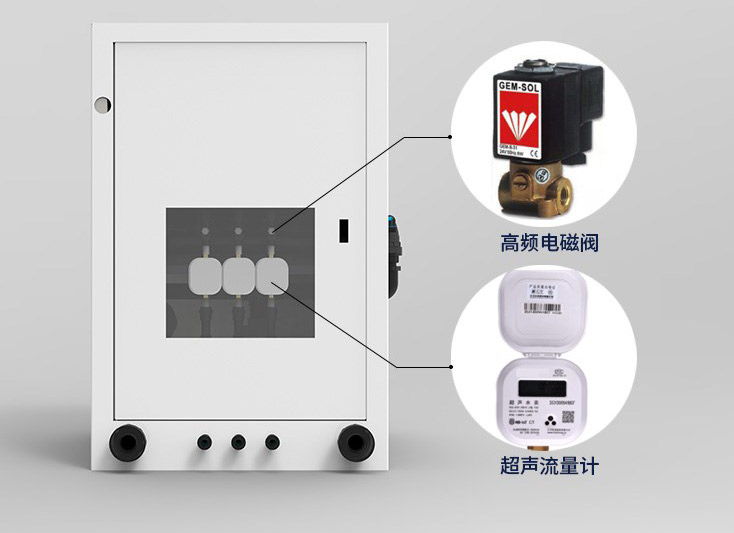

2. The fertilizer suction channel is equipped with a solenoid valve to realize electronic start and stop without manual start and stop;

3. The fertilizer suction channel is equipped with a check valve and a filter to prevent the backflow of the fertilizer liquid, filter the impurities in the fertilizer liquid, and ensure that the fertilizer liquid is clean;

4. Equipped with precision electric valve + electronic flow sensor, which can automatically dispense fertilizer and monitor the instantaneous flow and cumulative flow of fertilizer in real time;

5. 10-inch touch screen high-definition display, the login interface supports administrator password registration to prevent arbitrary operations;

6. The field can be controlled manually or automatically, the two modes can be switched, and the operation is flexible and convenient; and it is equipped with a physical knob to ensure the normal operation of the field;

7. Intelligent irrigation, quantitative irrigation can be timed, and rotation irrigation mode can be set;

8. Support mobile terminal and computer terminal control, easy to operate, efficient and fast;

9. The system can realize real-time data display, time setting, touch control, upper and lower limit setting, timing control, partition irrigation, rotation irrigation mode, system parameter setting, etc., with various operation modes to meet different needs;

10. Real-time detection of EC\PH fertilizer concentration and pH detection of fertilizer solution;

11. Pipeline pressure monitoring, pressure upper and lower limit alarm protection, in case of failure, the system automatically stops running;

12. The total amount of fertilizer injection and the instantaneous amount of fertilizer injection can be monitored in real time;

13. Irrigation can be automatically implemented according to the external soil environmental conditions;

14. Wireless data transmission + IoT cloud platform monitoring, remote control + mobile WeChat terminal data monitoring and control;

15. Expandable weather station, soil moisture, etc.;

16. Built-in IoT wireless intelligent gateway, which can expand 1~254 valve controllers;

17. Scalable access to wireless intelligent gateway, linked with field wireless valve controller, can expand 1~51 way valve controller;

18. Support MODBUS protocol;
