Industrial router

Wi-Fi GPS Router Industrial 3G 4G LTE router with VPN function for IoT Agriculture

UR35 Industrial Router The UR35 is an industrial-grade 4G LTE cellular router with a 5-port Ethernet interface for mission-critical communications. Featured with multiple network protocols and VPN tunnels, UR35 provides secure and reliable solutions for a range of M2M/IoT deployments.

Product Details

Product Description

4G WiFi industrial router.png

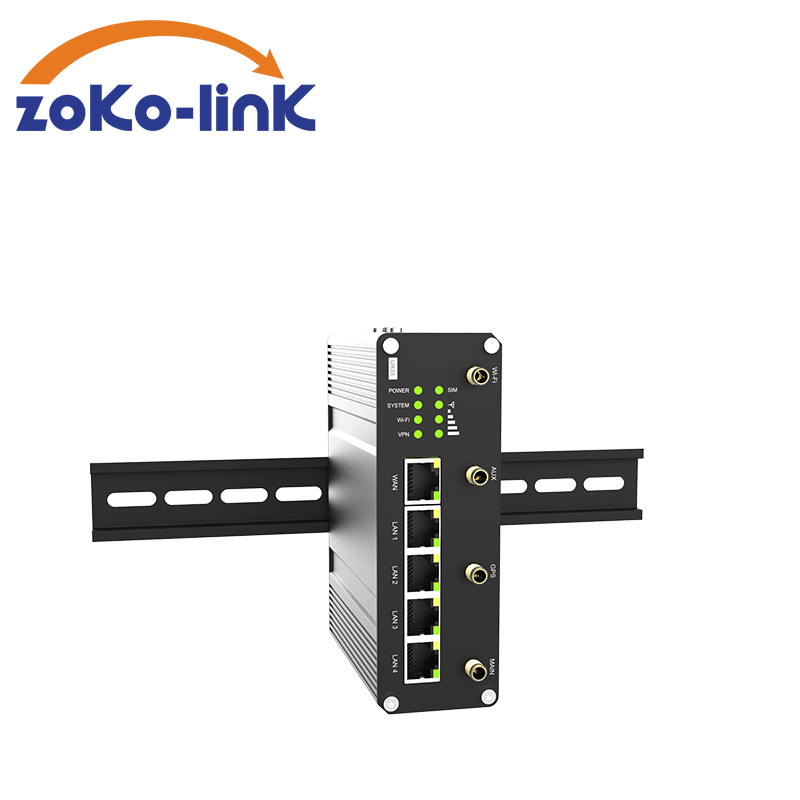

Zoko-UR35 Industrial Cellular Router

The UR35 is an industrial-grade 4G LTE cellular router with a 5-port Ethernet interface for mission-critical communications. Featured with multiple network protocols and VPN tunnels, UR35 provides secure and reliable solutions for a range of M2M/IoT deployments.

Product Highlight.png

Industrial Cellular Router (3).png

Failover/Redundancy

Ursalink Industrial Cellular Router keeps network running smoothly with link diversity such as Gigabit Ethernet, 3G/4G/LTE, Dual band Wi-Fi, etc. and provides high continuity of M2M communication for vertical market. The multi-level link detection, recovery mechanism, and watchdog are as well in place to ensure best internet continuity.

Multiple Encryption Tunnel
The UR35 provides multiple encryption tunnels such as OpenVPN, IPsec, DMVPN, L2TP, GRE, and PPTP to safeguard data transmission. The built-in firewall and multi-level authorization access control mechanism provides comprehensive security protection against network attacks.

Rugged Design
With powerful NXP processor, communication module and rugged enclosure, the UR35 is designed from the ground up to offer industrial-grade network connection that is reliable, stable and robust for industries.
Wide operating temp range from -40℃ to 70℃, IP30 Ingress protection, high EMC Level, the UR35 survives in most mission critical.

Flexible Deisgn (Customizable)
The custom development can be simplified into Python programming. User may access the system APIs and other resources with this feature and further develop the UR35 functions to meet certain requirements.

	Zoko-UR32	Zoko-UR35
Capabilities	CPU	528 MHz, 32-bit ARM Cortex-A7
	Flash	128 MB
	Memory	128 MB DDR3
	Built-in	Watchdog
	GPS (optional)	GPS + GLONASS
	Micro SD	Supports micro SD card up to 128 GB
Interfaces	SIM Slots	2
	Ethernet Ports (Mbps)	2 x 10/100	5 x 10/100
	Serial Ports	1 x RS232	1 x RS232 + 1 x RS485
	Digital (I/O)	1 x DI + 1 x DO
	Antenna Connectors	2 x Cellular Connectors 1 x Wi-Fi/GPS Connector	2 x Cellular Connectors 1 x WiFi Connector 1 x GPS Connector
Network	Network Protocols	PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIP v1/v2, OSPF, DDNS, VRRP, HTTP, HTTPS, DNS, ARP, QoS, SNTP, Telnet, VLAN, SSH
	AAA	Radius, TACACS+, LDAP, Local Authentication
	Firewall	ACL/DMZ/Port Mapping/MAC Binding
	Wi-Fi (optional)	IEEE 802.11b/g/n
	Serial Port	Transparent ( TCP Client/Server, UDP), Modbus Master, Modbus Gateway (Modbus RTU to Modbus TCP)
	VPN	DMVPN/IPsec/OpenVPN/PPTP/L2TP/GRE
	Reliability	VRRP, WAN Failover, Dual SIM Backup
Maintenance	Management	Web, CLI, SMS, Watchdog, On-Demand Dial up
	Multilevel Authority	Multiple Levels of User Authority
Hardware	Power Input	9-48 VDC
	Power Output	2 x 802.3af/at PoE PSE	4 x 802.3af/at PoE PSE
	Ingress Protection	IP30
	Housing & Weight	Metal 271g (0.60 lb)	Metal 481 g (1.06lb)
	Dimensions	108 x 90 x 26 mm (4.25 x 3.54 x 1.02 in)	135 x 100 x 45 mm (5.31 x 3.94 x 1.77 in)
	Mounting	Desktop, Wall or DIN Rail Mounting
Others	Operating Temperature	-40°C to +70°C (-40℉ to +158℉) Reduced Cellular Performance above 60°C
	Storage Temperature	-40°C to +85°C (-40℉ to +185℉)
	Relative Humidity	0% to 95% (Non-Condensing) at 25°C/77℉
	Certifications	RoHS, CE, FCC
	EMC	IEC 61000-4-2 Level 3 IEC 61000-4-3 Level 3 IEC 61000-4-4 Level 4 IEC 61000-4-5 Level 4 IEC 61000-4-6 Level 3 IEC 61000-4-8 Level 4

Detailed Images

Detailed Images.jpg

Partners

Certifications

Application Example

Idea for Connecting...

Application Example.png

Factory

We spare no efforts in quality control and product innovation. The strong R&D capability empowers Zoko-link to provide remarkable reliability and usability for the global marketplace. With future in mind, Zoko-link designs, deploys and delivers custom-tailored services with an emphasis on the most minor details that enhance our products longevity.
